Check your timing mark

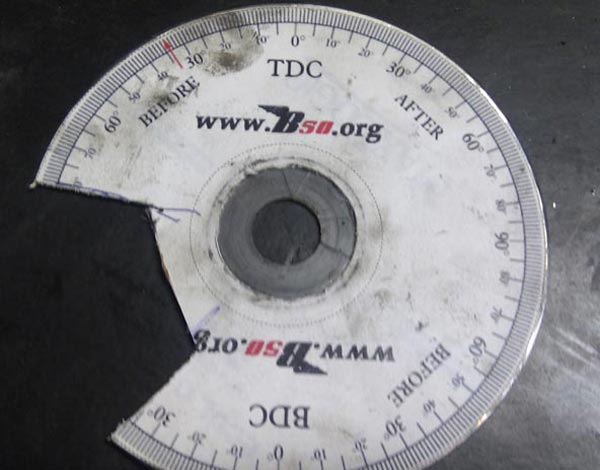

I used a degree disc made on a DVD and cut out a part from the disc so you can see the timing mark on the
alternator. You need also to make the center hole 16 mm

First find your TDC. Click here to see how to.

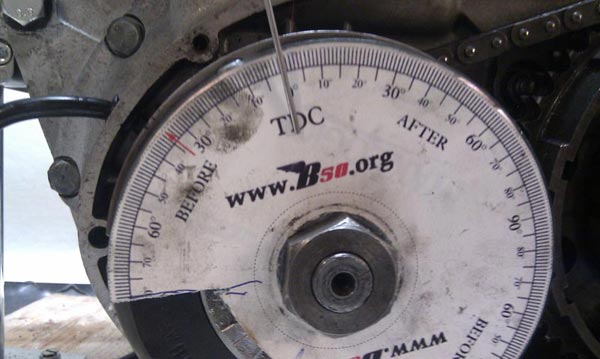

Adjust your pointer to your TDC

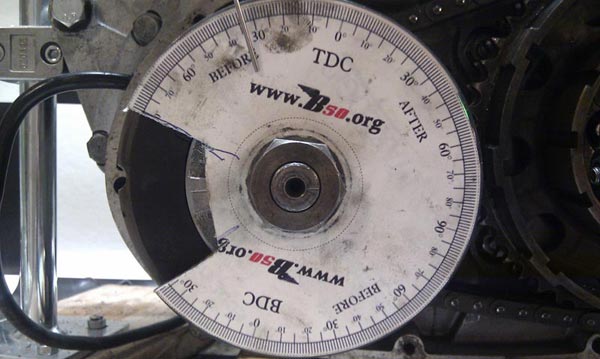

Move crank to your 34 ( 30 )degree.

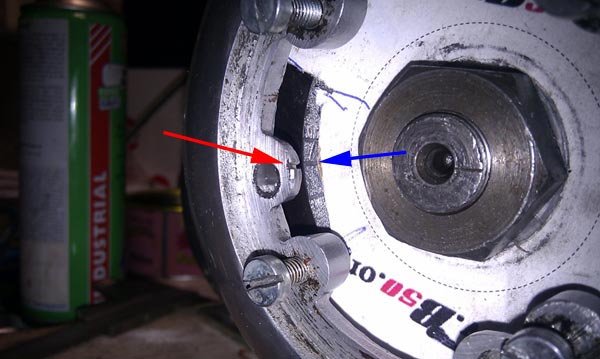

Mount your cover and check your timing mark. You could see my mark on the cover, where I have adjusted my timing mark.
